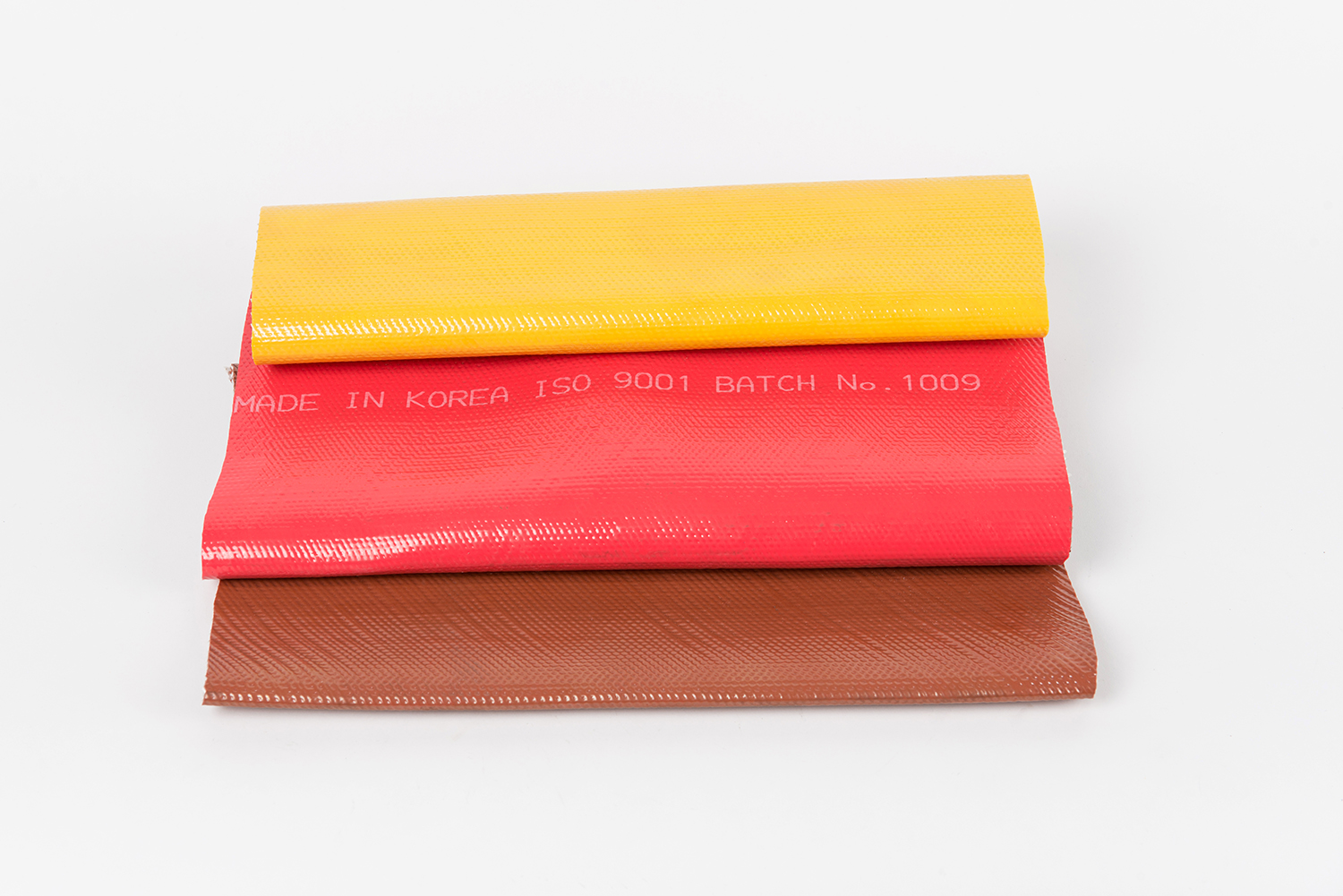

   TPU Layflat Hose (WTF-01)

TPU Layflat Hose (WTF-01)

-We Produce Both Type of TPU Layflat Hose:
-Extruded-Through-The-Weave Hose
-& Three-Ply Hose
-Inner & Outer Layer:
-Thermoplastic Polyurethane(TPU)
-Reinforcement Jacket: High Strength Polyester or
-Polyamide Yarn.

-Application Temperature Range:
-: -50~80C
-Features: Oil-proof, Water-proof,
-Non Poison, No Smell, Antistatic
-Transportation material: Gas, Drinking Water,
-Diesel, Gasoline etc.

Application Scope: The TPU lay flat hose we produce can be used in temporary transportation line for water and oil supply, shale gas oil transportation, emergency aid and urban emergency water supply. In addition, it may also be used in food and sanitation industry like transporting milk, juice and drinking water etc.
<>

Products I.D / mm Working Pressure MPa Bursting Pressure MPa Weight(Kg) Meter Tensile Strength/KN
50 / 1.0 51 1 3 0.55
50 /1.6 51 1.6 4.8 0.65
50 / 3.5 51 3.5 10.5 0.9
65 / 1.0 63 1 3 0.65
65 / 1.6 63 1.6 4.8 0.95
80 / 0.8 76 0.8 2.4 0.75
80 / 1.0 76 1 3 0.8
80 / 1.6 76 1.6 4.8 1.25
100 / 1.0 102 1 3 1.2 80
100 / 1.0(J) 102 1 3 1.4 100
100 / 1.6 102 1.6 4.8 1.45 80
125 / 1.0 127 1 3 1.6 120
150 / 1.0 152 1 3 1.8 120
150 / 1.6 152 1.6 4.8 2.5 150
250 / 0.6 254 0.4 1.2 4
250 / 1.0 254 1 3 4.2
300 / 1.0 305 1 3 5
