Applications
● Industrial Welding
● Painting
Characteristics
● Combining two special synthetic rubber hoses
● High flame resistance
● Abrasion Resistant
● Low curvature radius
● High UV resistance
● Excellent flexibility
| Size(mm) | Thickness(mm) | Inner Diameter | Outer Diameter(mm) | Roll Length(M) | Working Pressure ( At 20°C kgf/㎠) |
|---|---|---|---|---|---|
| 5 | 3/16" | 4.8 | 11.2 | 10~100 | 15 |
| 6 | 1/4" | 6.3 | 12.9 | 10~100 | 15 |
| 8 | 5/16" | 7.9 | 14.7 | 10~100 | 15 |
| 9 | 3/8" | 9.5 | 16.7 | 10~100 | 15 |

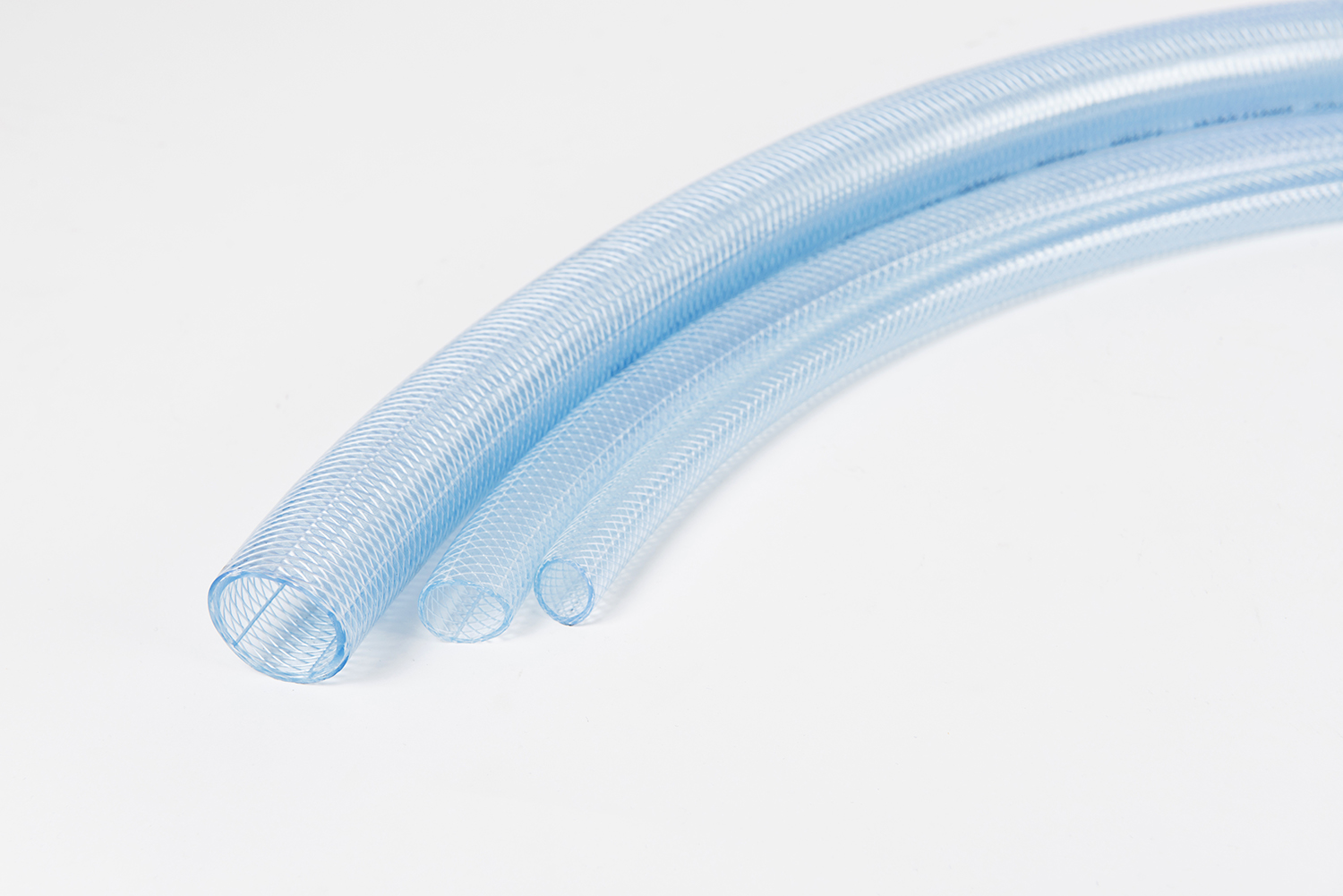

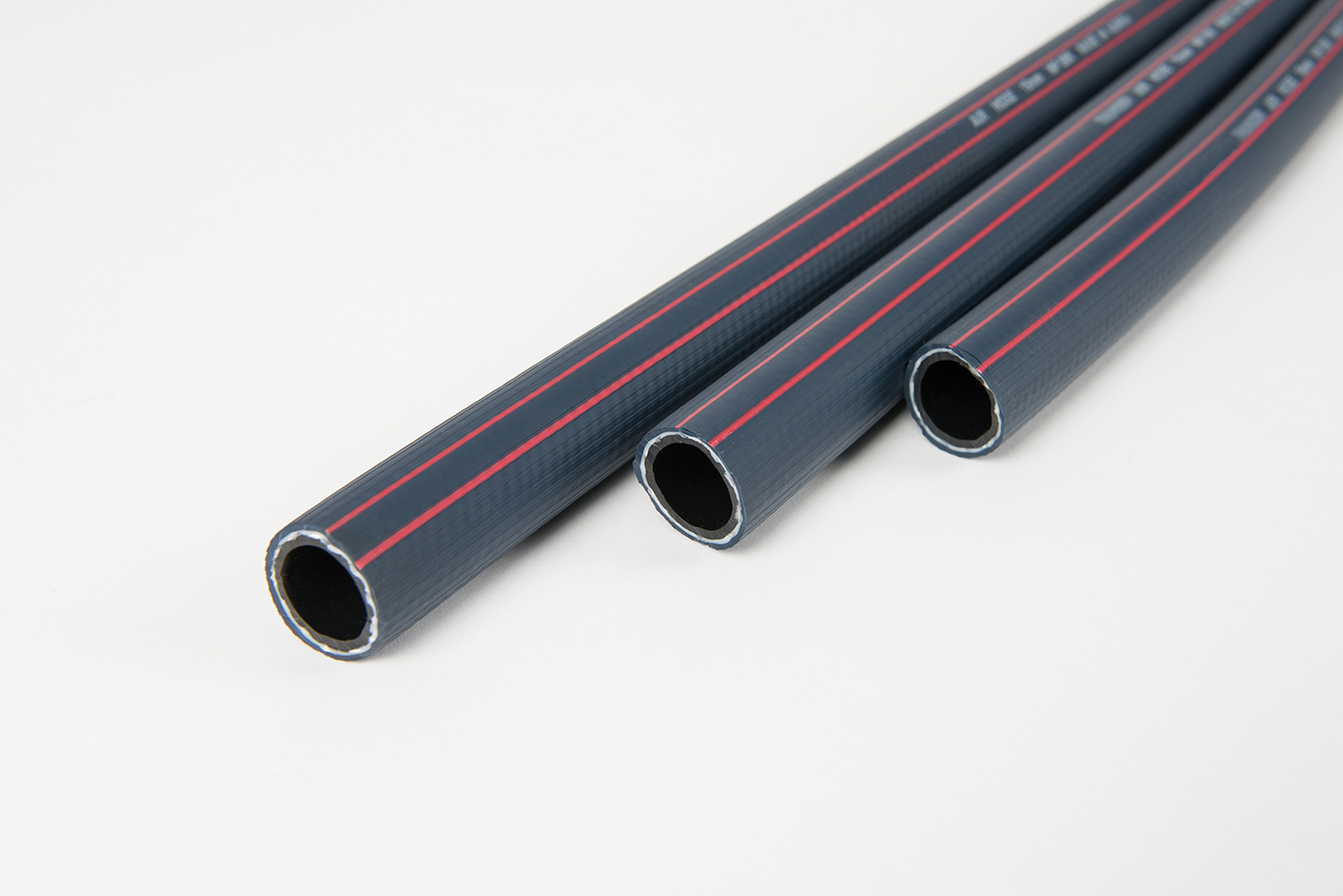

Other Small Diameter Hose
